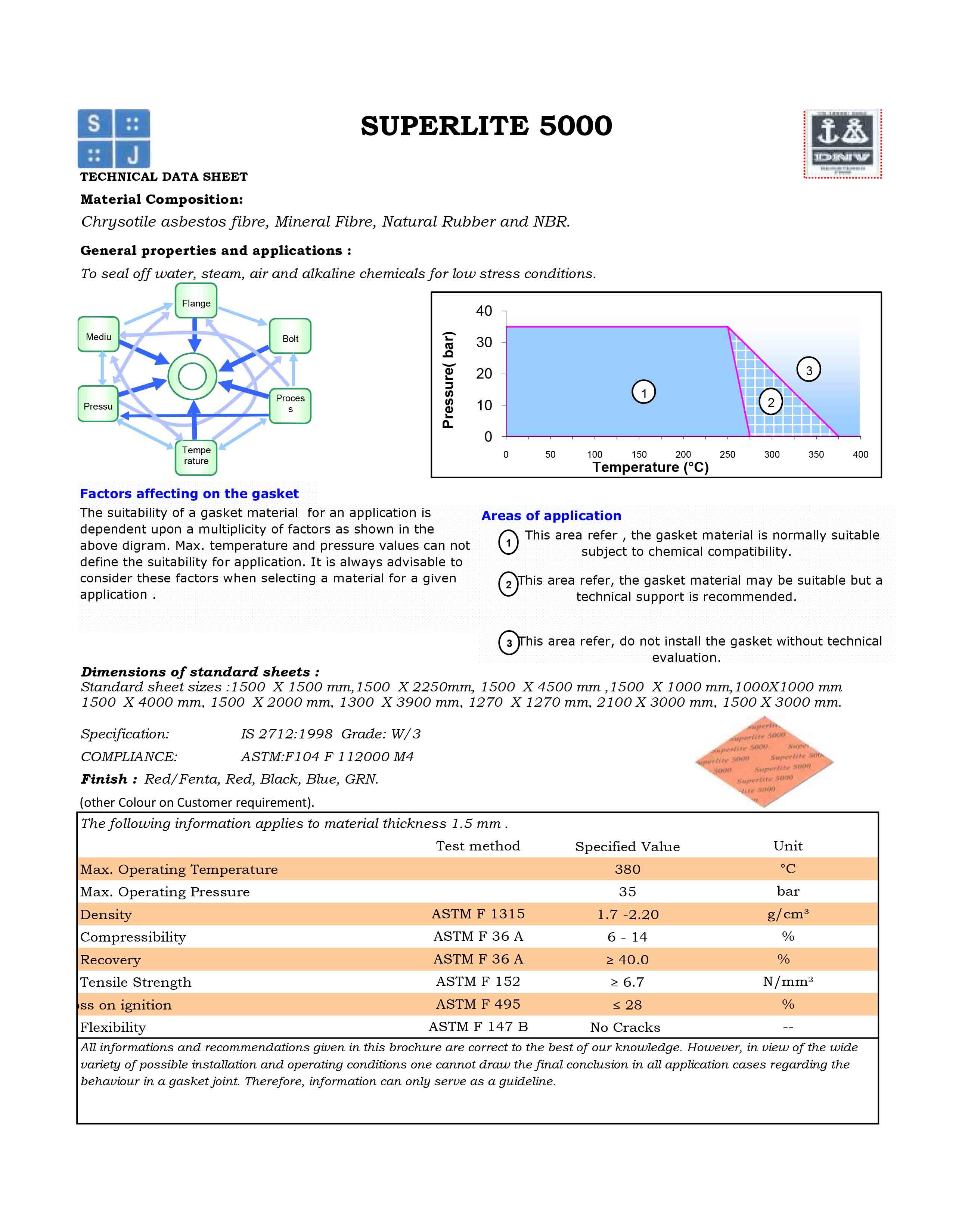

Superlite 5000
TECHNICAL DATA SHEET
Material Composition:
Factors affecting on the gasket Areas of applicationThe suitability of a gasket material for an applic ation is dependent upon a multiplicity of factors as shown in the above digram. Max. temperature and pressure values can not define the suitability for application. It is always advisable to consider these factors when selecting a material for a given This area refer , the gasket material is normally suitable subject to chemical compatibility. This area refer, the gasket material may be suitable but a
SUPERLITE 5000
Chrysotile asbestos fibre, Mineral Fibre, Natural Rubber and NBR.
General properties and applications :
To seal off water, steam, air and alkaline chemicals for low stress conditions.
Dimensions of standard sheets :
1500 X 4000 mm, 1500 X 2000 mm, 1300 X 3900 mm, 1270 X 1270 mm, 2100 X 3000 mm, 1500 X 3000 mm.
Specification: IS 2712:1998 Grade: W/3
COMPLIANCE: ASTM:F104 F 112000 M4
Finish : Red/Fenta, Red, Black, Blue, GRN.
(other Colour on Customer requirement).
Specified Value
Max. Operating Temperature 380
Max. Operating Pressure 35
Density 1.7 -2.20
Compressibility 6 - 14
Recovery ≥ 40.0
Tensile Strength ≥ 6.7
Loss on ignition ≤ 28
Flexibility No Cracks All informations and recommendations given in this brochure are correct to the best of our knowledge. However, in view of the wide variety of possible installation and operating conditions one cannot draw the final conclusion in all application cases regarding the behaviour in a gasket joint. Therefore, information can only serve as a guideline.
ASTM F 152 N/mm²
ASTM F 495 %
ASTM F 147 B -
ASTM F 36 A %
This area refer, do not install the gasket without technical evaluation.
Standard sheet sizes :1500 X 1500 mm,1500 X 2250mm, 1500 X 4500 mm ,1500 X 1000 mm,1000X1000 mm
The following information applies to material thickness 1.5 mm . Test method Unit
°C
bar
ASTM F 1315 g/cm³
ASTM F 36 A %
consider these factors when selecting a material for a given application .
This area refer, the gasket material may be suitable but a technical support is recommended.
