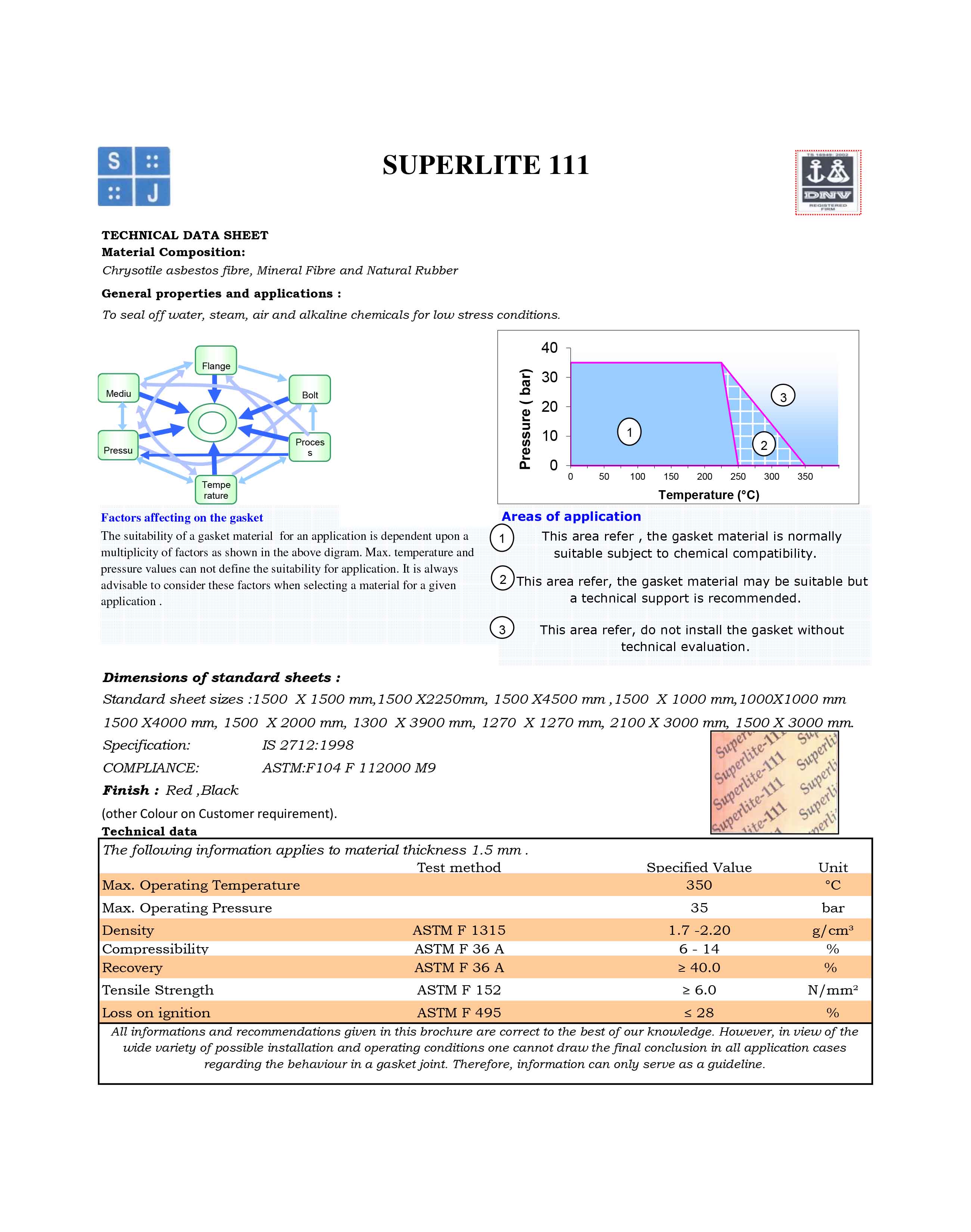

Superlite 111
Factors affecting on the gasket Areas of application
Dimensions of standard sheets :
1500 X4000 mm, 1500 X 2000 mm, 1300 X 3900 mm, 1270 X 1270 mm, 2100 X 3000 mm, 1500 X 3000 mm.
Specification: IS 2712:1998
COMPLIANCE: ASTM:F104 F 112000 M9
Finish : Red ,Black
(other Colour on Customer requirement). Technical data The following information applies to material thickness 1.5 mm . Test method Specified Value Unit Max. Operating Temperature 350 °C
Max. Operating Pressure 35 bar
Density ASTM F 1315 1.7 -2.20 g/cm³ Compressibility ASTM F 36 A 6 - 14 % Recovery ASTM F 36 A ≥ 40.0 % Tensile Strength ASTM F 152 ≥ 6.0 N/mm² Loss on ignition ASTM F 495 ≤ 28 %
The suitability of a gasket material for an application is dependent upon a multiplicity of factors as shown in the above digram. Max. temperature and pressure values can not define the suitability for application. It is always advisable to consider these factors when selecting a material for a given application .
This area refer , the gasket material is normally suitable subject to chemical compatibility.
This area refer, the gasket material may be suitable but a technical support is recommended.
This area refer, do not install the gasket without technical evaluation.
Standard sheet sizes :1500 X 1500 mm,1500 X2250mm, 1500 X4500 mm ,1500 X 1000 mm,1000X1000
