Engineer Co.

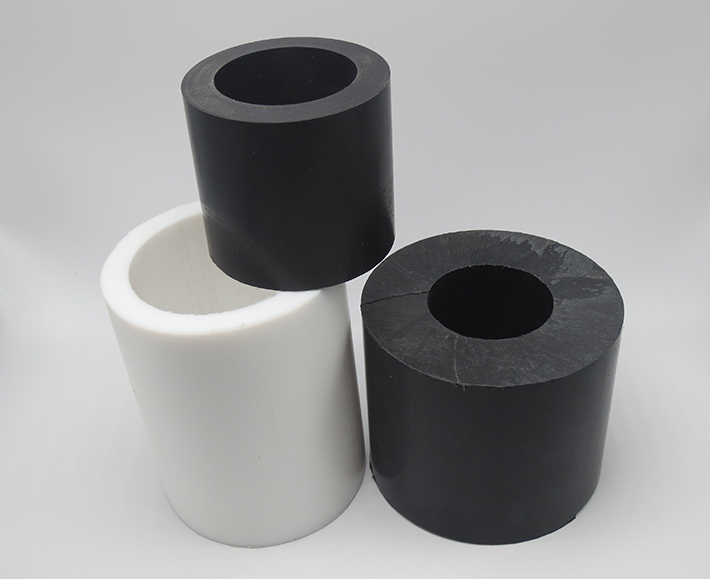

PTFE Tube

Material: PTFE, PTFE
Specification: Customized
Inner diameter: 10~400mm
Color: White or customized
Used temperature: -180℃~+260℃
Crack elongation: ≥230%
Type: Extruded, pressed
Apparent density: 2.10-2.30 g/cm3
Tensile Strength: ≥18.0
outer diameter: 20~450mm

Packaging & Delivery

Single package size:
100X100X5 cm
Single gross weight:
1000.0 kg
Package Type:
Wrapped by bubble sheet then packed into Polywood case or as customized packing

PTFE tubing:
There are three types of PTFE pipes: For a pipe with outside diameter 1-25 mm and thickness of wall 0.1-2.5 mm, we choose polymized PTFE resin and process it by pressing; For a pipe with outside diameter 25-200 mm and thickness of wall 1.5-8 mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25-1200 mm and thickness of wall 5-500 mm, we process it by die pressing.

Application:

Insulated pipe casing for wire, pipe for corrossive fluids,electric insulated parts used in high frequent conditions.



Feature:

  1. Anti-flaming
    2. Insulation
    3. Anti-aging
    4. Corrosion resistant

Main indexes:

Item Unit Result
Apparent density g/cm3 2.10-2.30
Tensile strength MPa ≥18.0
Crack elongation % ≥230
Temperature range -180~+260



PTFE tube:OD:2-500mm,Length:300-50 000mm

PTFE has the highest melting point and is capable of continued service at -180-260 C.

PTFE  is a melt processible resin capable of continued service at 204 C.

PTFE products such as teflon gaskets are used as gasket and packing materials in chemical processing equipment; as electrical insulation for maximum reliability; and in bearings, seals, piston rings and other mechanical applications, especially those require anti-stick characteristics.

PTFE has excellent thermal and electrical insulation properties. it has a low coefficient of friction.
